java.awt
Class RadialGradientPaint

java.lang.Object
  java.awt.MultipleGradientPaint
      java.awt.RadialGradientPaint

All Implemented Interfaces:

Paint, Transparency

public final class RadialGradientPaint
extends MultipleGradientPaint

The RadialGradientPaint class provides a way to fill a shape with a circular radial color gradient pattern. The user may specify 2 or more gradient colors, and this paint will provide an interpolation between each color.

The user must specify the circle controlling the gradient pattern, which is described by a center point and a radius. The user can also specify a separate focus point within that circle, which controls the location of the first color of the gradient. By default the focus is set to be the center of the circle.

This paint will map the first color of the gradient to the focus point, and the last color to the perimeter of the circle, interpolating smoothly for any in-between colors specified by the user. Any line drawn from the focus point to the circumference will thus span all the gradient colors.

Specifying a focus point outside of the circle's radius will result in the focus being set to the intersection point of the focus-center line and the perimeter of the circle.

The user must provide an array of floats specifying how to distribute the colors along the gradient. These values should range from 0.0 to 1.0 and act like keyframes along the gradient (they mark where the gradient should be exactly a particular color).

In the event that the user does not set the first keyframe value equal to 0 and/or the last keyframe value equal to 1, keyframes will be created at these positions and the first and last colors will be replicated there. So, if a user specifies the following arrays to construct a gradient:

     {Color.BLUE, Color.RED}, {.3f, .7f}


this will be converted to a gradient with the following keyframes:

     {Color.BLUE, Color.BLUE, Color.RED, Color.RED}, {0f, .3f, .7f, 1f}


The user may also select what action the RadialGradientPaint should take when filling color outside the bounds of the circle's radius. If no cycle method is specified, NO_CYCLE will be chosen by default, which means the the last keyframe color will be used to fill the remaining area.

The colorSpace parameter allows the user to specify in which colorspace the interpolation should be performed, default sRGB or linearized RGB.

The following code demonstrates typical usage of RadialGradientPaint, where the center and focus points are the same:

     Point2D center = new Point2D.Float(50, 50);
     float radius = 25;
     float[] dist = {0.0f, 0.2f, 1.0f};
     Color[] colors = {Color.RED, Color.WHITE, Color.BLUE};
     RadialGradientPaint p =
         new RadialGradientPaint(center, radius, dist, colors);

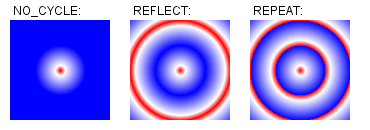

This image demonstrates the example code above, with default (centered) focus for each of the three cycle methods:

It is also possible to specify a non-centered focus point, as in the following code:

     Point2D center = new Point2D.Float(50, 50);
     float radius = 25;
     Point2D focus = new Point2D.Float(40, 40);
     float[] dist = {0.0f, 0.2f, 1.0f};
     Color[] colors = {Color.RED, Color.WHITE, Color.BLUE};
     RadialGradientPaint p =
         new RadialGradientPaint(center, radius, focus,
                                 dist, colors,
                                 CycleMethod.NO_CYCLE);

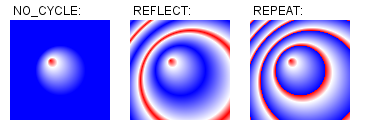

This image demonstrates the previous example code, with non-centered focus for each of the three cycle methods:

Since:

1.6

See Also:

Paint, Graphics2D.setPaint(java.awt.Paint)

Nested Class Summary

Modifier and Type	Class and Description

Nested classes/interfaces inherited from class java.awt.MultipleGradientPaint

MultipleGradientPaint.ColorSpaceType, MultipleGradientPaint.CycleMethod

Field Summary

Modifier and Type	Field and Description

Fields inherited from interface java.awt.Transparency

BITMASK, OPAQUE, TRANSLUCENT

Constructor and Description

RadialGradientPaint(float cx, float cy, float radius, float[] fractions, Color[] colors)
Constructs a RadialGradientPaint with a default NO_CYCLE repeating method and SRGB color space, using the center as the focus point.

RadialGradientPaint(float cx, float cy, float radius, float[] fractions, Color[] colors, MultipleGradientPaint.CycleMethod cycleMethod)
Constructs a RadialGradientPaint with a default SRGB color space, using the center as the focus point.

RadialGradientPaint(float cx, float cy, float radius, float fx, float fy, float[] fractions, Color[] colors, MultipleGradientPaint.CycleMethod cycleMethod)
Constructs a RadialGradientPaint with a default SRGB color space.

RadialGradientPaint(Point2D center, float radius, float[] fractions, Color[] colors)
Constructs a RadialGradientPaint with a default NO_CYCLE repeating method and SRGB color space, using the center as the focus point.

RadialGradientPaint(Point2D center, float radius, float[] fractions, Color[] colors, MultipleGradientPaint.CycleMethod cycleMethod)
Constructs a RadialGradientPaint with a default SRGB color space, using the center as the focus point.

RadialGradientPaint(Point2D center, float radius, Point2D focus, float[] fractions, Color[] colors, MultipleGradientPaint.CycleMethod cycleMethod)
Constructs a RadialGradientPaint with a default SRGB color space.

RadialGradientPaint(Point2D center, float radius, Point2D focus, float[] fractions, Color[] colors, MultipleGradientPaint.CycleMethod cycleMethod, MultipleGradientPaint.ColorSpaceType colorSpace, AffineTransform gradientTransform)
Constructs a RadialGradientPaint.

RadialGradientPaint(Rectangle2D gradientBounds, float[] fractions, Color[] colors, MultipleGradientPaint.CycleMethod cycleMethod)
Constructs a RadialGradientPaint with a default SRGB color space.

Method Summary

Modifier and Type	Method and Description
PaintContext	createContext(ColorModel cm, Rectangle deviceBounds, Rectangle2D userBounds, AffineTransform transform, RenderingHints hints) Creates and returns a PaintContext used to generate a circular radial color gradient pattern.
Point2D	getCenterPoint() Returns a copy of the center point of the radial gradient.
Point2D	getFocusPoint() Returns a copy of the end point of the gradient axis.
float	getRadius() Returns the radius of the circle defining the radial gradient.

Methods inherited from class java.awt.MultipleGradientPaint

getColors, getColorSpace, getCycleMethod, getFractions, getTransform, getTransparency

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

RadialGradientPaint

public RadialGradientPaint(float cx,
                           float cy,
                           float radius,
                           float[] fractions,
                           Color[] colors)

Constructs a RadialGradientPaint with a default NO_CYCLE repeating method and SRGB color space, using the center as the focus point.

Parameters:

cx - the X coordinate in user space of the center point of the circle defining the gradient. The last color of the gradient is mapped to the perimeter of this circle.

cy - the Y coordinate in user space of the center point of the circle defining the gradient. The last color of the gradient is mapped to the perimeter of this circle.

radius - the radius of the circle defining the extents of the color gradient

fractions - numbers ranging from 0.0 to 1.0 specifying the distribution of colors along the gradient

colors - array of colors to use in the gradient. The first color is used at the focus point, the last color around the perimeter of the circle.

Throws:

NullPointerException - if fractions array is null, or colors array is null

IllegalArgumentException - if radius is non-positive, or fractions.length != colors.length, or colors is less than 2 in size, or a fractions value is less than 0.0 or greater than 1.0, or the fractions are not provided in strictly increasing order

RadialGradientPaint

public RadialGradientPaint(Point2D center,
                           float radius,
                           float[] fractions,
                           Color[] colors)

Constructs a RadialGradientPaint with a default NO_CYCLE repeating method and SRGB color space, using the center as the focus point.

Parameters:

center - the center point, in user space, of the circle defining the gradient

radius - the radius of the circle defining the extents of the color gradient

fractions - numbers ranging from 0.0 to 1.0 specifying the distribution of colors along the gradient

colors - array of colors to use in the gradient. The first color is used at the focus point, the last color around the perimeter of the circle.

Throws:

NullPointerException - if center point is null, or fractions array is null, or colors array is null

IllegalArgumentException - if radius is non-positive, or fractions.length != colors.length, or colors is less than 2 in size, or a fractions value is less than 0.0 or greater than 1.0, or the fractions are not provided in strictly increasing order

RadialGradientPaint

public RadialGradientPaint(float cx,
                           float cy,
                           float radius,
                           float[] fractions,
                           Color[] colors,
                           MultipleGradientPaint.CycleMethod cycleMethod)

Constructs a RadialGradientPaint with a default SRGB color space, using the center as the focus point.

Parameters:

cx - the X coordinate in user space of the center point of the circle defining the gradient. The last color of the gradient is mapped to the perimeter of this circle.

cy - the Y coordinate in user space of the center point of the circle defining the gradient. The last color of the gradient is mapped to the perimeter of this circle.

radius - the radius of the circle defining the extents of the color gradient

fractions - numbers ranging from 0.0 to 1.0 specifying the distribution of colors along the gradient

colors - array of colors to use in the gradient. The first color is used at the focus point, the last color around the perimeter of the circle.

cycleMethod - either NO_CYCLE, REFLECT, or REPEAT

Throws:

NullPointerException - if fractions array is null, or colors array is null, or cycleMethod is null

IllegalArgumentException - if radius is non-positive, or fractions.length != colors.length, or colors is less than 2 in size, or a fractions value is less than 0.0 or greater than 1.0, or the fractions are not provided in strictly increasing order

RadialGradientPaint

public RadialGradientPaint(Point2D center,
                           float radius,
                           float[] fractions,
                           Color[] colors,
                           MultipleGradientPaint.CycleMethod cycleMethod)

Constructs a RadialGradientPaint with a default SRGB color space, using the center as the focus point.

Parameters:

center - the center point, in user space, of the circle defining the gradient

radius - the radius of the circle defining the extents of the color gradient

fractions - numbers ranging from 0.0 to 1.0 specifying the distribution of colors along the gradient

colors - array of colors to use in the gradient. The first color is used at the focus point, the last color around the perimeter of the circle.

cycleMethod - either NO_CYCLE, REFLECT, or REPEAT

Throws:

NullPointerException - if center point is null, or fractions array is null, or colors array is null, or cycleMethod is null

IllegalArgumentException - if radius is non-positive, or fractions.length != colors.length, or colors is less than 2 in size, or a fractions value is less than 0.0 or greater than 1.0, or the fractions are not provided in strictly increasing order

RadialGradientPaint

public RadialGradientPaint(float cx,
                           float cy,
                           float radius,
                           float fx,
                           float fy,
                           float[] fractions,
                           Color[] colors,
                           MultipleGradientPaint.CycleMethod cycleMethod)

Constructs a RadialGradientPaint with a default SRGB color space.

Parameters:

cx - the X coordinate in user space of the center point of the circle defining the gradient. The last color of the gradient is mapped to the perimeter of this circle.

cy - the Y coordinate in user space of the center point of the circle defining the gradient. The last color of the gradient is mapped to the perimeter of this circle.

radius - the radius of the circle defining the extents of the color gradient

fx - the X coordinate of the point in user space to which the first color is mapped

fy - the Y coordinate of the point in user space to which the first color is mapped

fractions - numbers ranging from 0.0 to 1.0 specifying the distribution of colors along the gradient

colors - array of colors to use in the gradient. The first color is used at the focus point, the last color around the perimeter of the circle.

cycleMethod - either NO_CYCLE, REFLECT, or REPEAT

Throws:

NullPointerException - if fractions array is null, or colors array is null, or cycleMethod is null

IllegalArgumentException - if radius is non-positive, or fractions.length != colors.length, or colors is less than 2 in size, or a fractions value is less than 0.0 or greater than 1.0, or the fractions are not provided in strictly increasing order

RadialGradientPaint

public RadialGradientPaint(Point2D center,
                           float radius,
                           Point2D focus,
                           float[] fractions,
                           Color[] colors,
                           MultipleGradientPaint.CycleMethod cycleMethod)

Constructs a RadialGradientPaint with a default SRGB color space.

Parameters:

center - the center point, in user space, of the circle defining the gradient. The last color of the gradient is mapped to the perimeter of this circle.

radius - the radius of the circle defining the extents of the color gradient

focus - the point in user space to which the first color is mapped

fractions - numbers ranging from 0.0 to 1.0 specifying the distribution of colors along the gradient

colors - array of colors to use in the gradient. The first color is used at the focus point, the last color around the perimeter of the circle.

cycleMethod - either NO_CYCLE, REFLECT, or REPEAT

Throws:

NullPointerException - if one of the points is null, or fractions array is null, or colors array is null, or cycleMethod is null

IllegalArgumentException - if radius is non-positive, or fractions.length != colors.length, or colors is less than 2 in size, or a fractions value is less than 0.0 or greater than 1.0, or the fractions are not provided in strictly increasing order

RadialGradientPaint

@ConstructorProperties(value={"centerPoint","radius","focusPoint","fractions","colors","cycleMethod","colorSpace","transform"})
public RadialGradientPaint(Point2D center,
                                                      float radius,
                                                      Point2D focus,
                                                      float[] fractions,
                                                      Color[] colors,
                                                      MultipleGradientPaint.CycleMethod cycleMethod,
                                                      MultipleGradientPaint.ColorSpaceType colorSpace,
                                                      AffineTransform gradientTransform)

Constructs a RadialGradientPaint.

Parameters:

center - the center point in user space of the circle defining the gradient. The last color of the gradient is mapped to the perimeter of this circle.

radius - the radius of the circle defining the extents of the color gradient

focus - the point in user space to which the first color is mapped

fractions - numbers ranging from 0.0 to 1.0 specifying the distribution of colors along the gradient

colors - array of colors to use in the gradient. The first color is used at the focus point, the last color around the perimeter of the circle.

cycleMethod - either NO_CYCLE, REFLECT, or REPEAT

colorSpace - which color space to use for interpolation, either SRGB or LINEAR_RGB

gradientTransform - transform to apply to the gradient

Throws:

NullPointerException - if one of the points is null, or fractions array is null, or colors array is null, or cycleMethod is null, or colorSpace is null, or gradientTransform is null

IllegalArgumentException - if radius is non-positive, or fractions.length != colors.length, or colors is less than 2 in size, or a fractions value is less than 0.0 or greater than 1.0, or the fractions are not provided in strictly increasing order

RadialGradientPaint

public RadialGradientPaint(Rectangle2D gradientBounds,
                           float[] fractions,
                           Color[] colors,
                           MultipleGradientPaint.CycleMethod cycleMethod)

Constructs a RadialGradientPaint with a default SRGB color space. The gradient circle of the RadialGradientPaint is defined by the given bounding box.

This constructor is a more convenient way to express the following (equivalent) code:

     double gw = gradientBounds.getWidth();
     double gh = gradientBounds.getHeight();
     double cx = gradientBounds.getCenterX();
     double cy = gradientBounds.getCenterY();
     Point2D center = new Point2D.Double(cx, cy);

     AffineTransform gradientTransform = new AffineTransform();
     gradientTransform.translate(cx, cy);
     gradientTransform.scale(gw / 2, gh / 2);
     gradientTransform.translate(-cx, -cy);

     RadialGradientPaint gp =
         new RadialGradientPaint(center, 1.0f, center,
                                 fractions, colors,
                                 cycleMethod,
                                 ColorSpaceType.SRGB,
                                 gradientTransform);


Parameters:

gradientBounds - the bounding box, in user space, of the circle defining the outermost extent of the gradient

fractions - numbers ranging from 0.0 to 1.0 specifying the distribution of colors along the gradient

colors - array of colors to use in the gradient. The first color is used at the focus point, the last color around the perimeter of the circle.

cycleMethod - either NO_CYCLE, REFLECT, or REPEAT

Throws:

NullPointerException - if gradientBounds is null, or fractions array is null, or colors array is null, or cycleMethod is null

IllegalArgumentException - if gradientBounds is empty, or fractions.length != colors.length, or colors is less than 2 in size, or a fractions value is less than 0.0 or greater than 1.0, or the fractions are not provided in strictly increasing order

Method Detail

createContext

public PaintContext createContext(ColorModel cm,
                                  Rectangle deviceBounds,
                                  Rectangle2D userBounds,
                                  AffineTransform transform,
                                  RenderingHints hints)

Creates and returns a PaintContext used to generate a circular radial color gradient pattern. See the description of the createContext method for information on null parameter handling.

Parameters:

cm - the preferred ColorModel which represents the most convenient format for the caller to receive the pixel data, or null if there is no preference.

deviceBounds - the device space bounding box of the graphics primitive being rendered.

userBounds - the user space bounding box of the graphics primitive being rendered.

transform - the AffineTransform from user space into device space.

hints - the set of hints that the context object can use to choose between rendering alternatives.

Returns:

the PaintContext for generating color patterns.

See Also:

Paint, PaintContext, ColorModel, Rectangle, Rectangle2D, AffineTransform, RenderingHints

getCenterPoint

public Point2D getCenterPoint()

Returns a copy of the center point of the radial gradient.

Returns:

a Point2D object that is a copy of the center point

getFocusPoint

public Point2D getFocusPoint()

Returns a copy of the end point of the gradient axis.

Returns:

a Point2D object that is a copy of the focus point

getRadius

public float getRadius()

Returns the radius of the circle defining the radial gradient.

Returns:

the radius of the circle defining the radial gradient
